| Pusher |
Bore 100mm x Ram 70mm x stroke 480mm |
Bore 125mm x Ram 90mm x stroke 480mm |
| Withdrawal / Straightner Entry |
Bore 100mm x Ram 70mm x stroke 164mm
Bore 100mm x Ram 70mm x stroke 210mm
Bore 100mm x Ram 70mm x stroke 390mm |
Bore 125mm x Ram 70mm x stroke 300mm |
| Withdrawal / Straightner Exit |
Bore 100mm x Ram 70mm x stroke 337mm
Bore 100mm x Ram 70mm x Stroke 450mm
Bore 100mm x Ram 70mm x stroke 650mm |
Bore 125mm x Ram 70mm x stroke 550mm |
| Dummybar Receiver |
Bore 80mm x Ram 36mm x stroke 150mm |
Bore 100mm x Ram 50mm x stroke 220mm |
| RDBG |
Bore 100mm x Ram 50mm x Stroke 1035mm
Bore 100mm x Ram 36mm x Stroke 300mm |
Bore 100mm x Ram 36mm x Stroke 950mm |
| Pusher Type Cross Transfer |
Bore 160mm x Ram 110mm x stroke 450mm
Bore 160mm x Ram 110mm x stroke 510mm
Bore 160mm x Ram 110mm x stroke 560mm |
Bore 160mm x Ram 110mm x stroke 450mm
Bore 160mm x Ram 110mm x stroke 510mm
Bore 160mm x Ram 110mm x stroke 560mm |
| RDBS |
Bore 100mm x Ram 70mm x stroke 1221mm. |
Bore 100mm x Ram 70mm x stroke 1221mm. |
| Slide Gate Cylinder |
1 QC Bore 4" x Ram 45mm x Stroke 80mm
2 QC Bore 4" x Ram 45mm x Stroke 125mm |
1 QC Bore 4" x Ram 45mm x Stroke 80mm
2 QC Bore 4" x Ram 45mm x Stroke 125mm |
| Hyd. Cylinder for Horizontal / Vertical Shearing Machine |
Bore 350mm x Ram 200mm x Stroke 175mm.
Bore 300mm x Ram 180mm x Stroke 150mm.
Bore 300mm x Ram 200mm x Stroke 175mm.
Bore 250mm x Ram 200mm x Stroke 175mm. |
Bore 350mm x Ram 200mm x Stroke 175mm.
Bore 300mm x Ram 180mm x Stroke 150mm.
Bore 300mm x Ram 200mm x Stroke 175mm.
Bore 250mm x Ram 200mm x Stroke 175mm. |
| Pne. Cylinder for Shearing Machine |
Bore 125mm x Rod 45mm x Stroke 900mm.
Bore 125mm x Rod 45mm x Stroke 1050mm.
Bore 125mm x Rod 45mm x Stroke 1250mm. |
Bore 125mm x Rod 45mm x Stroke 900mm.
Bore 125mm x Rod 45mm x Stroke 1050mm.
Bore 125mm x Rod 45mm x Stroke 1250mm. |

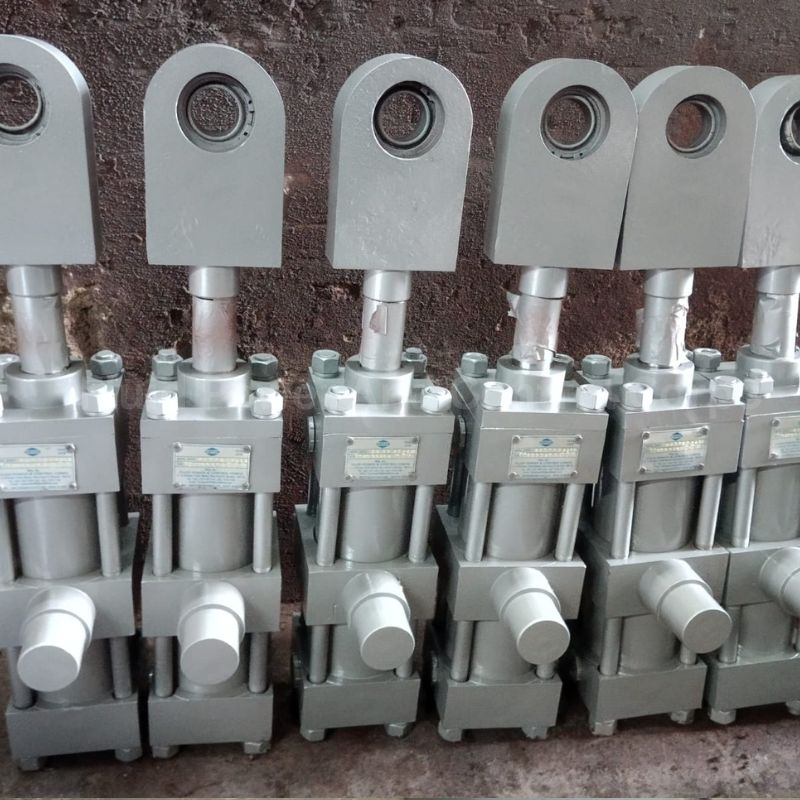

| Above sizes of cylinders are universal, usually found in Concast CCM. We have also designed & developed cylinders for Electrotherm & Vraj make CCM. For any other make CCM cylinders or non-standard sizes, please contact us with your size, specifications & drawings. |
