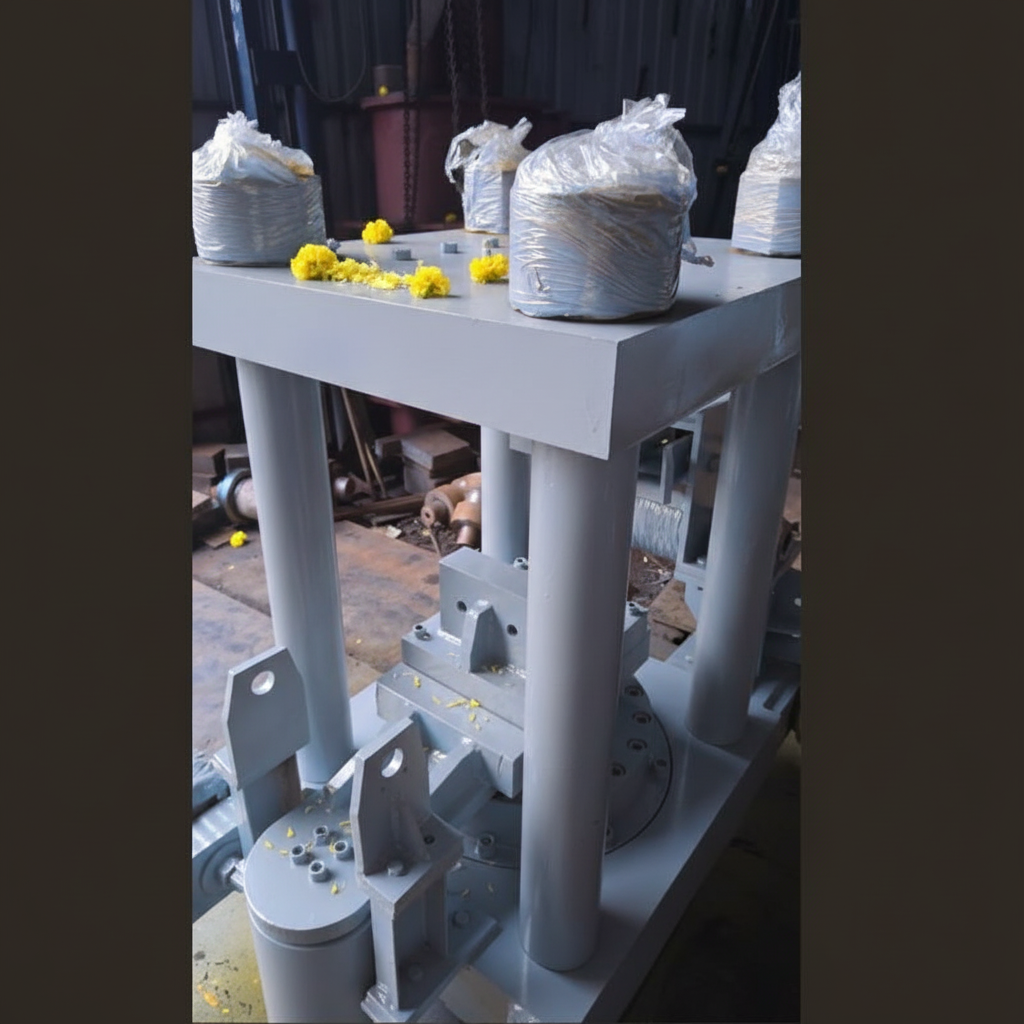

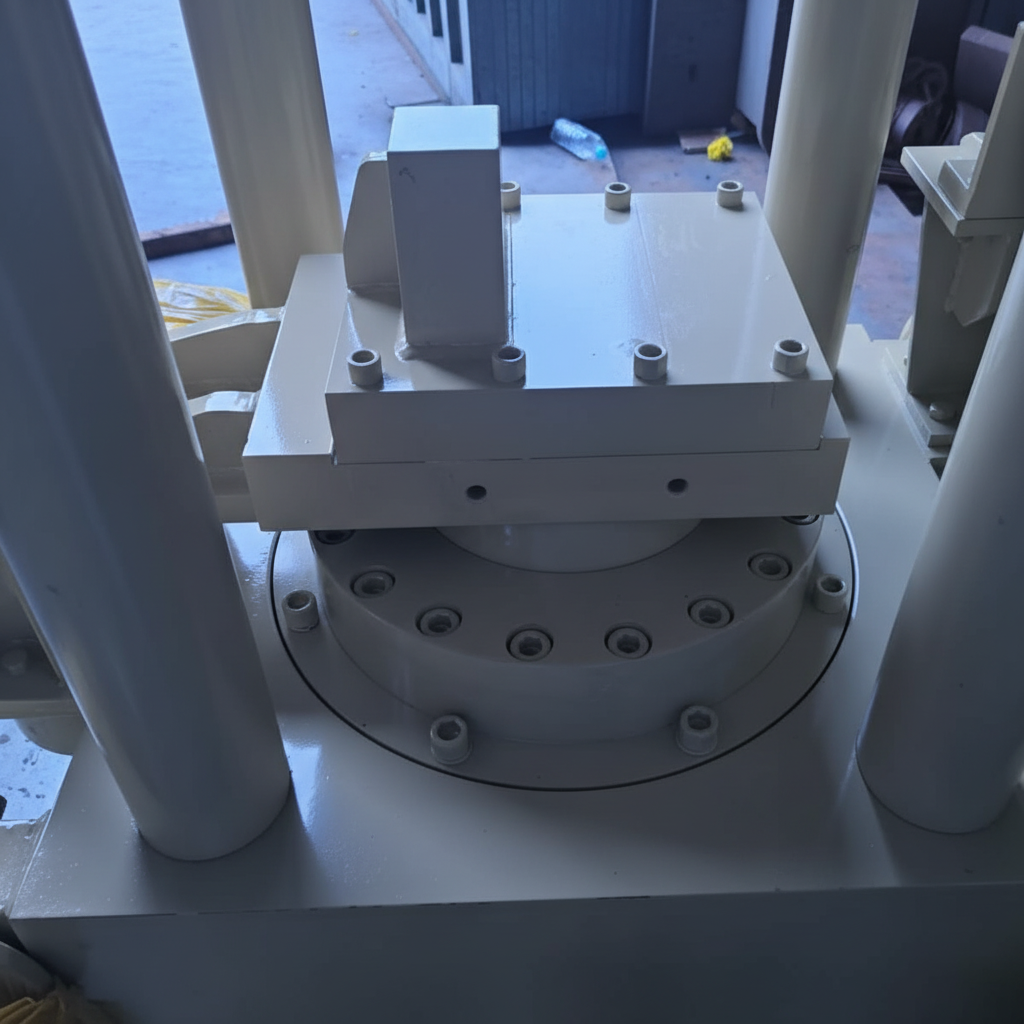

Precision Vertical Cutting for Steel Billets
Our vertical hot billet shearing machine is engineered for precise vertical cutting of hot steel billets in steel processing plants. This configuration offers excellent space efficiency and optimal material flow for plants with limited floor space or specific layout requirements.
Detailed Engineering Parameters
| Parameter | Standard Range | Custom Options |
|---|---|---|
| Cutting Capacity | Up to 400 tons | Higher capacity on request |
| Billet Size Range | 80mm - 250mm square | Custom sizes |
| Cutting Temperature | Up to 1200°C | Higher temperature options |
| Cutting Speed | Up to 25 cuts/minute | Custom speeds |
| Hydraulic System Pressure | Up to 300 bar | Higher pressure options |
| Motor Power | 60 kW - 180 kW | Custom power ratings |
| Control System | PLC-based automation | Advanced control options |

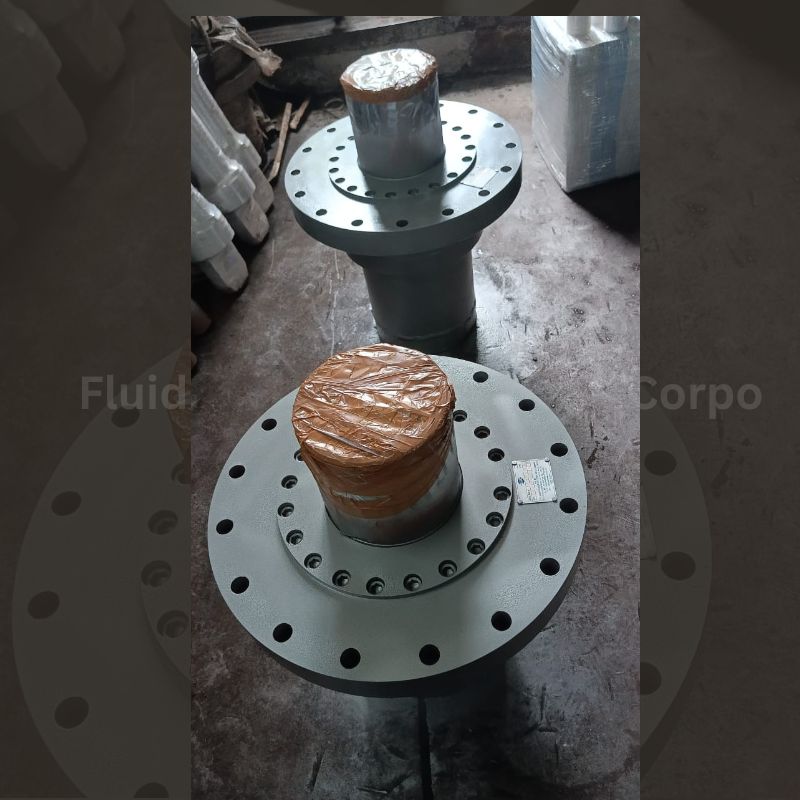

| Hyd cylinder for Horizontal/Vertical & shearing machine |
Bore 350mm x Ram 200mm x Stroke 175mm. Bore 300mm x Ram 180mm x Stroke 150mm. Bore 300mm x Ram 200mm x Stroke 175mm. Bore 250mm x Ram 200mm x Stroke 175mm. |
Bore 350mm x Ram 200mm x Stroke 175mm. Bore 300mm x Ram 180mm x Stroke 150mm. Bore 300mm x Ram 200mm x Stroke 175mm. Bore 250mm x Ram 200mm x Stroke 175mm. |
| PNE.CYL.FOR SHEAR M/C. | Bore 125mm x Rod 45mm x Stroke 900mm. Bore 125mm x Rod 45mm x Stroke 1050mm. Bore 125mm x Rod 45mm x Stroke 1250mm. |
Bore 125mm x Rod 45mm x Stroke 900mm. Bore 125mm x Rod 45mm x Stroke 1050mm. Bore 125mm x Rod 45mm x Stroke 1250mm. |
Ideal Use Cases
Continuous casting and rolling mill billet preparation
Hot billet sizing and preparation for downstream processes
Custom billet cutting for specific customer requirements
Billet preparation for forging applications
Real-world examples of our Shearing Machine Components



Our engineering team can design and manufacture vertical shearing machines to your exact specifications. Contact us for expert consultation.
